Description
TRA82256-4
🏁 Vehicle Specs

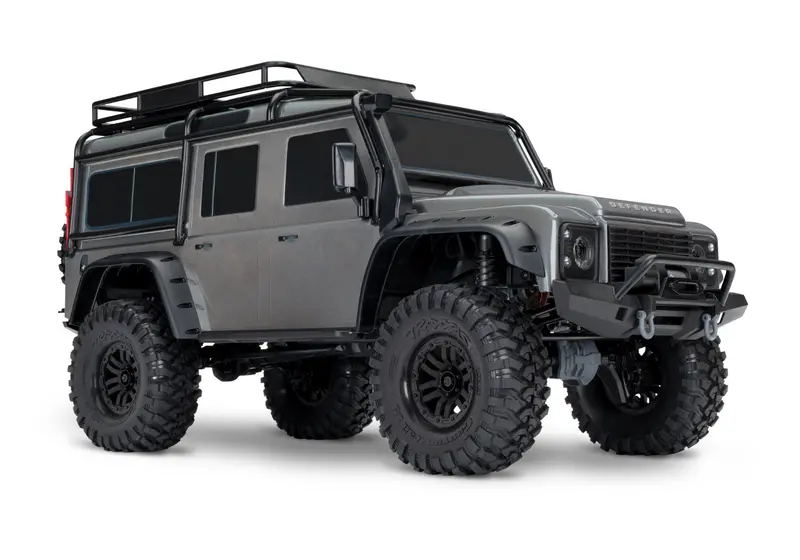

| Name | TRX-4® Land Rover® Defender® |
|---|---|
| Type | Trail / Crawler |
| Skill Level | 1 |
| Scale | 1/10 |
| Weight | 7.43 lb (3.37 kg) |
| Length | 23.07 in (586 mm) |
| Width | 9.78 in (249 mm) |
| Front Track | 9.78 in (249 mm) |
| Rear Track | 9.78 in (249 mm) |
| Height | 11.48 in (292 mm) |
| Wheelbase | 12.75 in (324 mm) |
| Center Ground Clearance | 3.14 in (80 mm) |
| Driveline | Shaft-driven 4WD |
| Transmission | 2-speed high/low, remote shifting |
| Differential Type | 4-gear, remote locking |
| Gear Pitch | 32 pitch |
| Steering Servo | 2075X metal-gear, digital high-torque waterproof |
| Radio System | TQi™ 2.4 GHz 4-channel transmitter with 6533 receiver |
| Battery Compartment | 159 mm (L) × 47 mm (W) × 23 mm (H), 26 mm (max height) |
⚙️ Motor Specs
| Name | Titan® 21T Reverse Rotation |
|---|---|
| Type | High-torque brushed motor |
| Weight | 8.47 oz (240 g) |
| Length | 3.07 in (78 mm) overall / 2.25 in (57 mm) can length |
| Diameter | 1.53 in (39 mm) |
| Shaft Size | 3 mm |
| Connector Type | Bullet |
🔋 ESC Specs
| Name | XL-5™ HV |
|---|---|
| Type | Brushed |
| Case Size | 1.23 in (31 mm) × 2.18 in (55 mm) × 1.04 in (26 mm) |
| Weight | 2.60 oz (74 g) |
| Battery Connectors | Bullet |
| Motor Connectors | Traxxas High-Current Connector |
| Power Wire | 14 gauge |
- Clipless Officially Licensed Land Rover®Defender® Body
- Injection molded scale details including grille, snorkel, and side mirrors
- Rugged, functional roll cage
- Tough fender flares
- Front bumper with tow hooks and replica winch
- Rear bumper with scale accessories and functional spare tire
- Full Nylon composite wheel wells and floor pans
- Quick and Easy Removal
- Trail-tuned XL-5™ HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ – 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse – no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
- Two stage low voltage protection (LVD)
- Titan® 550 Motor
- Powerful Titan 21T reverse rotation motor with internal cooling fan
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh
- Portal Axles
- Increase ground clearance (3.14″)
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
- TQi™ 2.4 GHz Radio System
- 4-channel transmitter
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Exclusive Cruise Control feature for extended trail driving
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- Patented waterproof receiver box with easy-access plug
- Rigid Steel Frame
- 1.5 mm thick steel frame rails increase torsional rigidity
- Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
- Adjustable rear shock tower positions for SWB and LWB configurations
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
- Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Drivetrain
- Full-time shaft driven 4-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Remote locking steel gear differentials with cable-actuation
- Steel gear transfer case
- Transmission
- Two speed high/low range with remote shifting
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
- Suspension
- Front — 3 link with panhard
- Rear — Triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter steel link rods with 4 mm threaded ends
- Aluminum GTS Shocks
- Oil-filled coilover GTS shocks
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
- Wheels and Tires
- 1.9″ Canyon Trail tires with trail-tuned foam inserts
- Pre-glued and mounted to tough black scale wheels
- Trail tuned S1 rubber compound
- 12 mm steel hex
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
- Requires Battery and Charger (Sold Separately)
