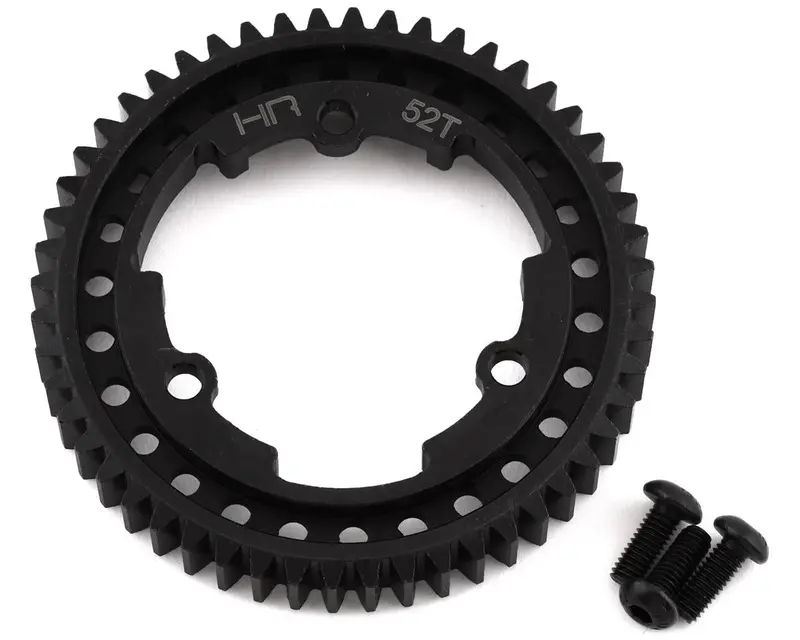

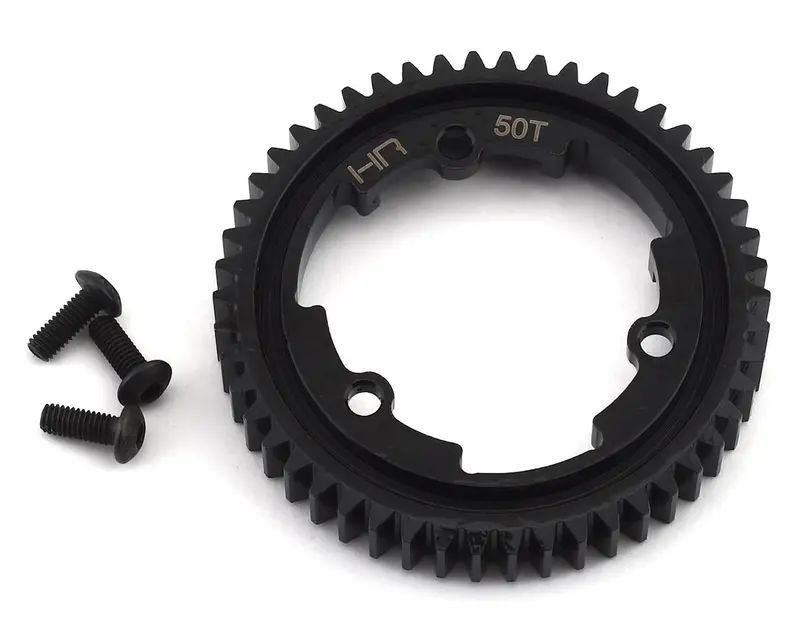

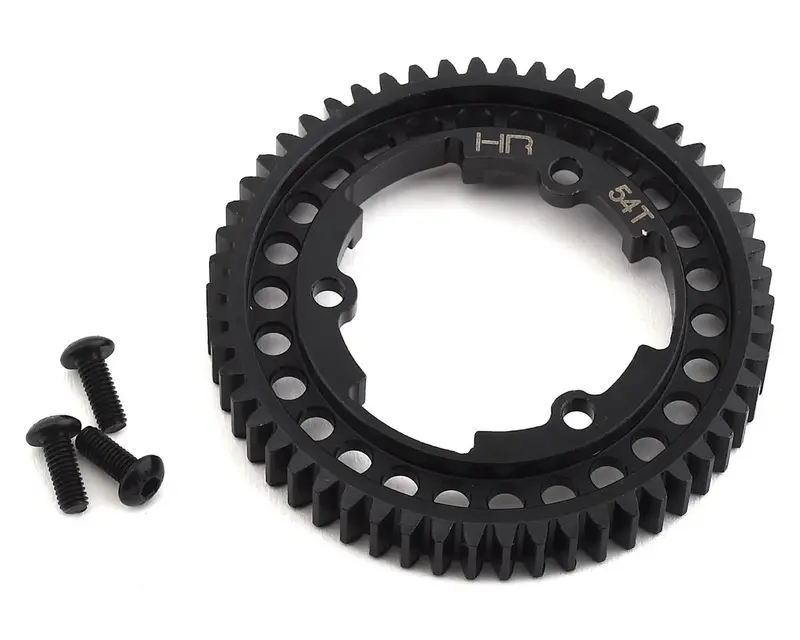

Hot Racing X-MAXX Steel Mod 1 Spur Gear – Assorted Tooth Counts

Description

The Hot Racing hardened steel Mod 1 spur gear is an optional upgrade for the Traxxas E Revo 2.0, X-Maxx 6S and 8S, XRT, Maxx 4S and XO-1 models. Choose from 46, 50, 52 and 54 tooth options.
NOTE:

• Do NOT use the pin system for setting the X-Maxx gear mesh. Instead, manually set the gear mesh without the pins. Refer to the Traxxas manual for instructions (ref. pg.22 Adjusting Gear Mesh)
• With the pins removed, use the four 4x16mm button-head cap screws on the bottom to set gear mesh. Loosen the four 4x16mm button-head cap screws. Cut a narrow strip of notebook paper and run it into the gear mesh. Slide the motor and pinion gear into the spur gear. Tighten the four 4x16mm button-head cap screws, and then remove the strip of paper. You should be able to run a fresh strip of paper through the gears without binding them.

Features:

• CNC machined hardened steel construction
• Black oxide finished
• Laser etched tooth count marking
• Upgrade for factory plastic spur gear

Specifications:Overall diameter: 52.8mm
Gear face width: 8mm

Includes:
