Description

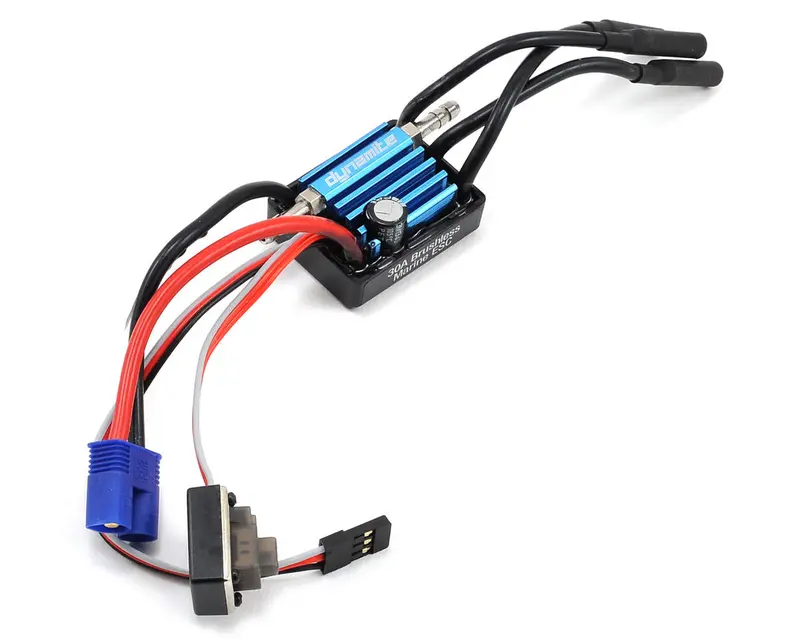

This is the Dynamite 30A Brushless 2-3S Marine ESC. The Dynamite 30A Brushless Marine ESC has been built and optimized for the everyday driving needs associated with your hobby. The waterproof and water-cooled ESC is easily able to switch battery chemistry through an external push button switch and provides an easy-to-install solution for replacement or upgrade needs. The ESC is pre-wired with an EC3 battery connector.
Features:
- 30A rated
- 2-3S LiPo compatible
- 6-9 cell NiMH compatible
- Waterproof and water cooled
Product Specifications
| Manufacturer # | 605482574973 |
| Forward | Yes |
| Reverse | Yes |
| BEC Type | Linear |
| Resistance | 0.002 ohms |
| Overload Protection | Yes |
| Output Connector | 4mm Bullet |
| BEC Continous Current | 1A |
| Low-Voltage Cutoff Programmable | Yes |
| Auto Cutoff | Yes |
| Time Delay Brake | Yes |
| BEC | Yes |
| BEC Maximum Burst Current | 2A |
| BEC Voltage | 6V |
| Input Voltage | 2-3S LiPo, 6-9 cells NiMH |
| Motor Output Lead | 14 AWG, 2.95 in (75mm) |
| Part Type | Electronics |
| Connector Type | EC3 |
| Brakes | Yes |
| Battery Input Lead | 14 AWG, 4.33 in (110mm) |
| Maximum Burst Current | 180A |
| Speed Control |
Marine Brushless |
